Country Wireless produce a range of high performance RF diplexers and triplexers.
The triplexer splits a single multi-band antenna feed into separate feeds for HF-50 MHz, 144 MHz and 432 MHz equipments.
We have designed a duplexer to work with the Duoband antennas made by Vine Antennas. Click here for more details on Duoband antennas.
High performance CAD designed diplexer using 8 pole Chebyshev high pass and low pass filters
Ideal for SOTA, RAYNET, ARES or RACES for fixed, mobile or portable stations operating multi-band transceivers
Passband insertion loss less than 1 dB (typically 0.5 dB)
Isolation better than -40 dB (typically -55 to -60 dB)
100 Watts RF max
Optional lightning surge arrestor built in for added protection
N type female connectors
Painted aluminium case sealed to IP65 standard (dust tight and protected against water jets)
RoHS certified free from certain hazardous substances banned by the EU
Each diplexer is supplied with a test certificate detailing its RF and VSWR performance
Carefully made in the UK
Click here for a frequency and isolation plot of a typical HF to 144 MHz and 432 MHz diplexer.
Please note before ordering that all diplexers are usually built to order. Dispatch can be up to two weeks after order.
When ordering please state the type of RF connectors required (N type females, N type male/female, S0239, BNC female or TNC female).
Prices on application.

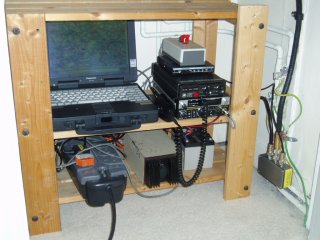

The 144 / 432MHz prototype diplexer was soak tested and is still running on the APRS Igate MB7UBN after 3 years continuous service. The Igate runs 24/7 providing APRS coverage to a large area of NW England around Bolton, Manchester and Warrington. The diplexer with it's original grey case is in the bottom right of the photograph directly connected to the Heliax coaxial cable from the dual band colinear antenna.
If you require more detailed information or need a special one-off diplexer or filter please contact us by email at info@no_spam_crosscountrywireless.net or phone +44(0)1204 410626 or +44(0)7752 391908.
